TMV6+ Intelligent VRF
TMV6+ Intelligent VRF
Cooling & Heating VRF
- · High efficiency
- · Surrounding refrigerant cooling technology
- · Triple backup system(fan motor + compressor + modular unit)
- · Auto dust remove function
- · 1100mm super long pipe design
- · Intelligent control
Choose your model.
Enhanced vapor injection technology
Injecting part of the gaseous refrigerant
into the compression chamber can greatly
improve the low-temperature heating
capacity and effectively reduce the exhaust
temperature.
Enhanced vapor injection technology
Injecting part of the gaseous refrigerant
into the compression chamber can greatly
improve the low-temperature heating
capacity and effectively reduce the exhaust
temperature.
SEER
TMV6+ full DC inverter intelligent VRF product, its seasonal energy efficiency ratio is up to 7.28, seasonal coefficient of energy is up to 4.49
SEER
TMV6+ full DC inverter intelligent VRF product, its seasonal energy efficiency ratio is up to 7.28, seasonal coefficient of energy is up to 4.49

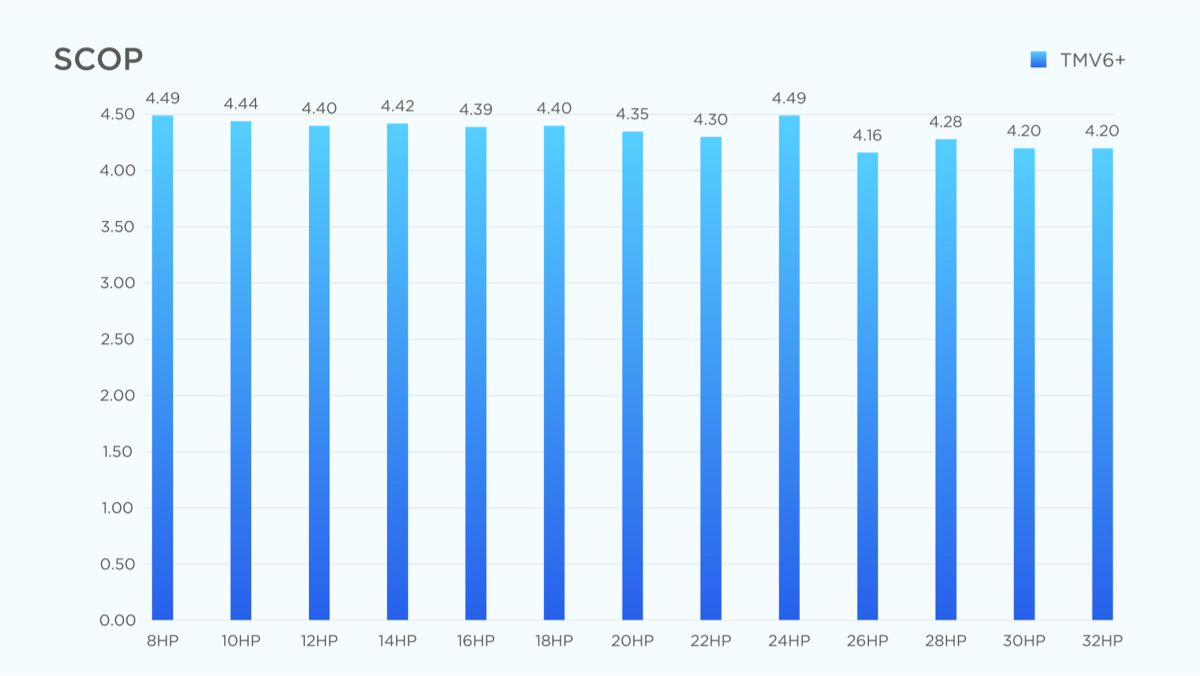

SCOP
TMV6+ full DC inverter intelligent VRF product, its seasonal energy efficiency ratio is up to 4.49, seasonal coefficient of energy is up to 4.16
SCOP
TMV6+ full DC inverter intelligent VRF product, its seasonal energy efficiency ratio is up to 4.49, seasonal coefficient of energy is up to 4.16

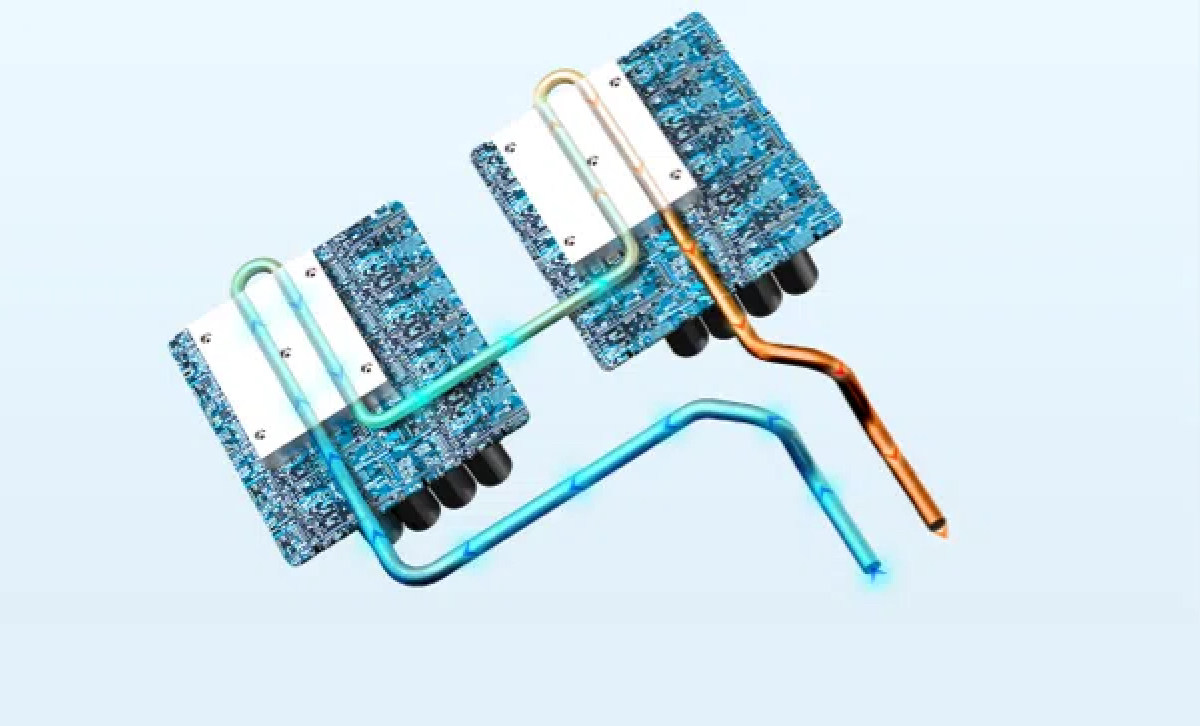

Refrigerant radiator
The wraparound refrigerant radiator can stably and efficiently take away the heat in the frequency conversion module of outdoor unit, improve the electrical reliability of the unit when working in high-temperature environment, and ensuring stable and safe operation.
Refrigerant radiator
The wraparound refrigerant radiator can stably and efficiently take away the heat in the frequency conversion module of outdoor unit, improve the electrical reliability of the unit when working in high-temperature environment, and ensuring stable and safe operation.

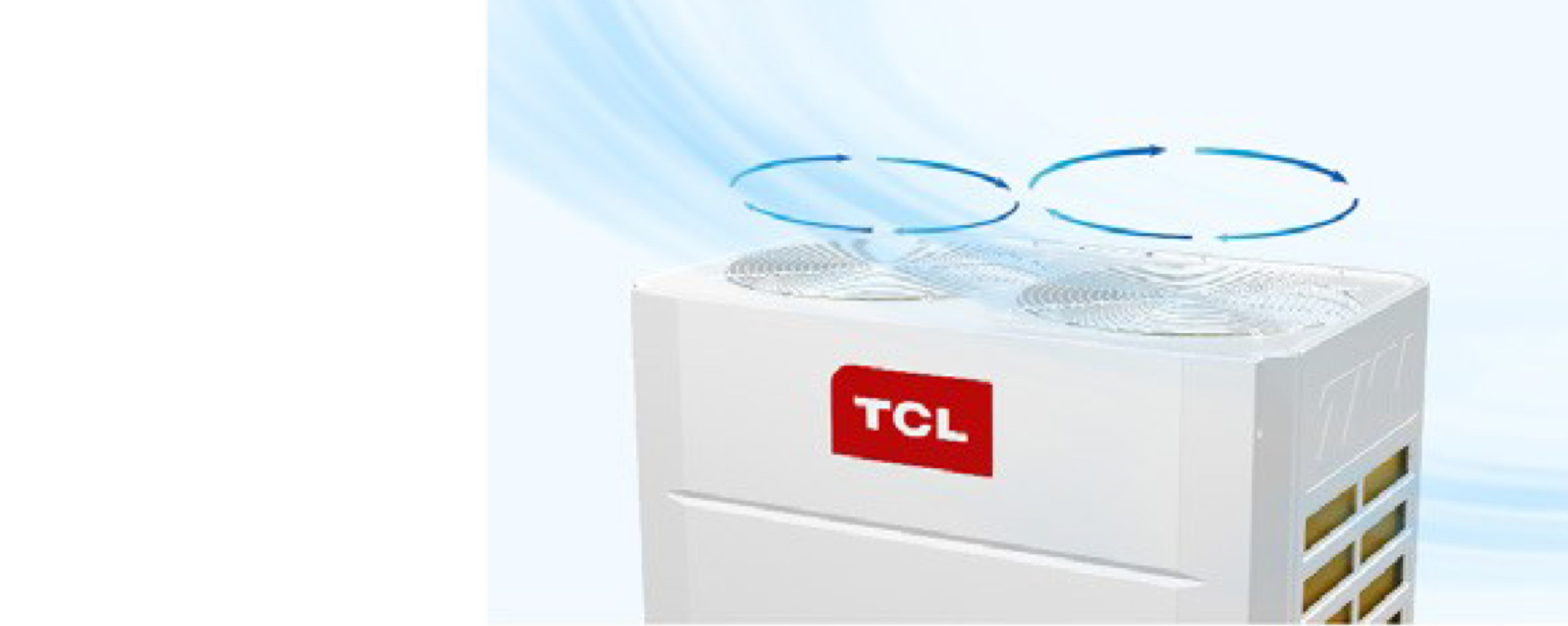

Air cooling heat dissipation
Through the fan (fan) to strengthen the ventilation, strengthen the cooling effect, to maintain stable and reliable system operation.
Air cooling heat dissipation
Through the fan (fan) to strengthen the ventilation, strengthen the cooling effect, to maintain stable and reliable system operation.
Compressor backup operation
In units with two compressors, if one compressor fails, the other compressor can run on its own, to ensure the air conditioning system can work stably.
Compressor backup operation
In units with two compressors, if one compressor fails, the other compressor can run on its own, to ensure the air conditioning system can work stably.

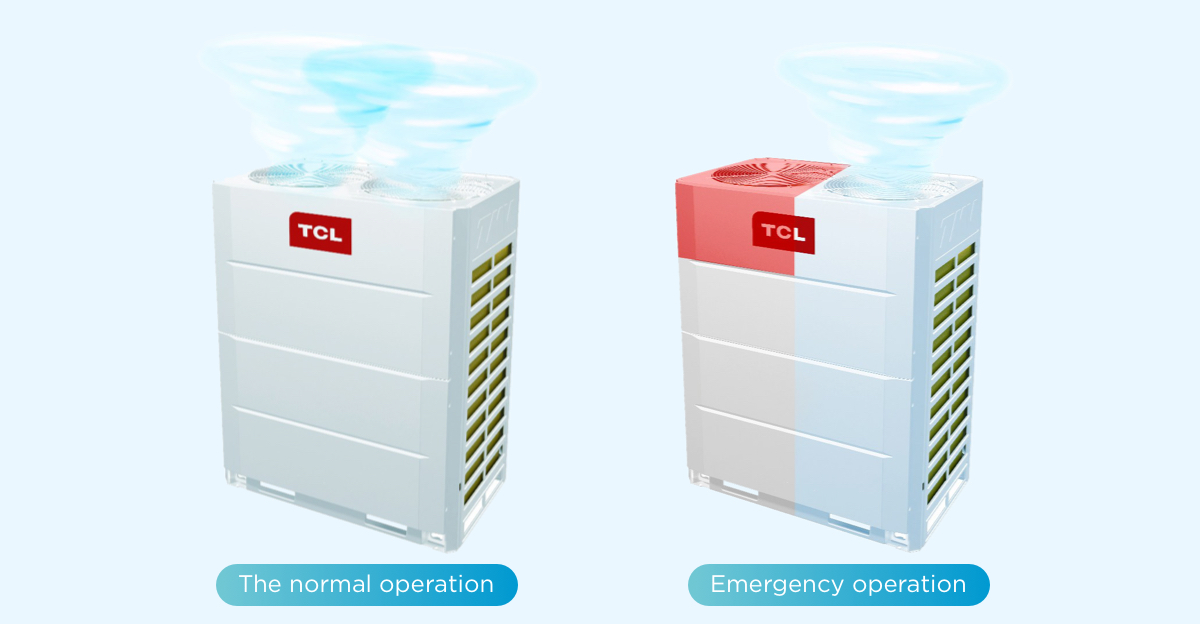

Emergency operation of fan motor
Some outdoor units are designed with dual fan, if the one fan motor fails, the other motor also can work normally, to avoid impact consumer's work and life.
Emergency operation of fan motor
Some outdoor units are designed with dual fan, if the one fan motor fails, the other motor also can work normally, to avoid impact consumer's work and life.
ODU backup operation
In a multi-unit system, if one outdoor unit fails, the other modules provide backup so that the system can continue operating.
ODU backup operation
In a multi-unit system, if one outdoor unit fails, the other modules provide backup sothat the system can continue operating.
Anti-adversity function
The external force blows the outdoor unit fan to rotate in reverse. At this time, start and stop the rotation of the fan, and then restart the fan motor in a forward rotation according to the normal procedure, so as not to damage the fan motors due to excessive starting current.
Anti-adversity function
The external force blows the outdoor unit fan to rotate in reverse. At this time, start and stop the rotation of the fan, and then restart the fan motor in a forward rotation according to the normal procedure, so as not to damage the fan motors due to excessive starting current.
An external force causes the fan to rotate in
the opposite direction
Instant reverse rotation, torque suddenlyincreased, easy to cause fan blade damage
An external force causes the fan to rotate in
the opposite direction
An external force causes the fan to rotate in
the opposite direction
Instant reverse rotation, torque suddenlyincreased, easy to cause fan blade damage
Instant reverse rotation, torque suddenlyincreased, easy to cause fan blade damage
Against the wind

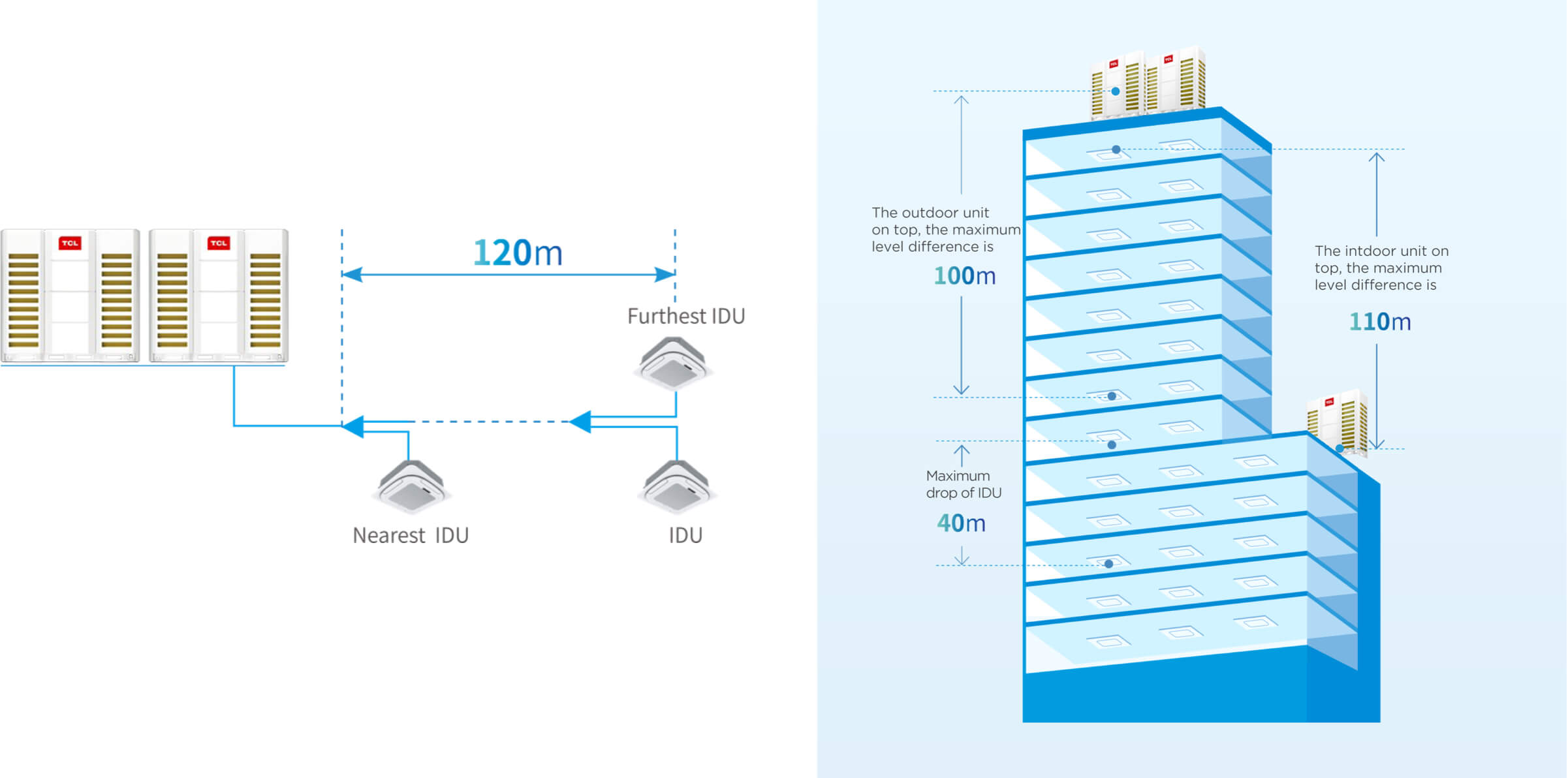

1100m Super Long Piping Design
The industry-leading piping length, with a total length of 1100m, makes floor design more flexible.
The max distance between the IDU and the ODU (the higher ODU) is 100m.
The max distance between the IDU and the ODU (the lower ODU) is 110m
The maximum distance between indoor units is 40m.
The maximum actual single pipe length is 220m.
The maximum equivalent single tube length is 240m.
The equivalent length from first indoor distributor to last indoor uni120m.
1100m Super Long Piping Design
The industry-leading piping length, with a total length of 1100m, makes floor design more flexible.
The max distance between the IDU and the ODU (the higher ODU) is 100m.
The max distance between the IDU and the ODU (the lower ODU) is 110m
The maximum distance between indoor units is 40m.
The maximum actual single pipe length is 220m.
The maximum equivalent single tube length is 240m.
The equivalent length from first indoor distributor to last indoor uni120m.

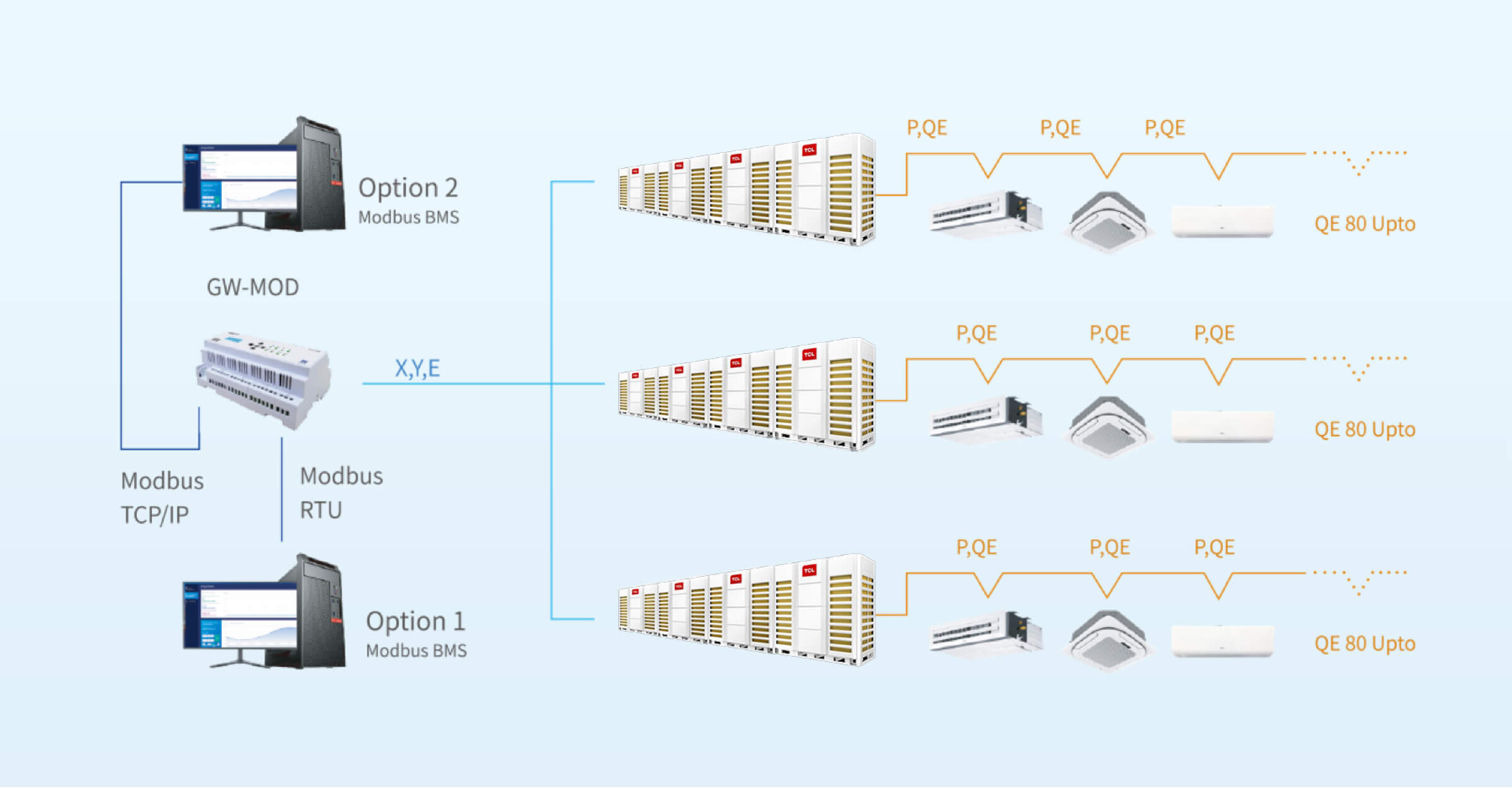

BMS Gateways
BMS Gateways
